Mazda MX5 Mk2/Mk2.5 1.8 GT25/28 Turbo Exhaust Manifold + Downpipe
This is the exhaust manifold, downpipe and centrepipe for the Mazda MX5 Mk2/2.5 1.8.
It has been designed to run using a Garrett GT2860RS or GT2871R or any hybrid using the same dimensions. This gives you the flexibility to choose to go for a cheap eBay version, a second hand unit from a Nissan 200SX with the compressor side adapters, a Garrett GT2860/GT2871 or even the much loved Disco Potato.
Recommended Compatible Turbos:

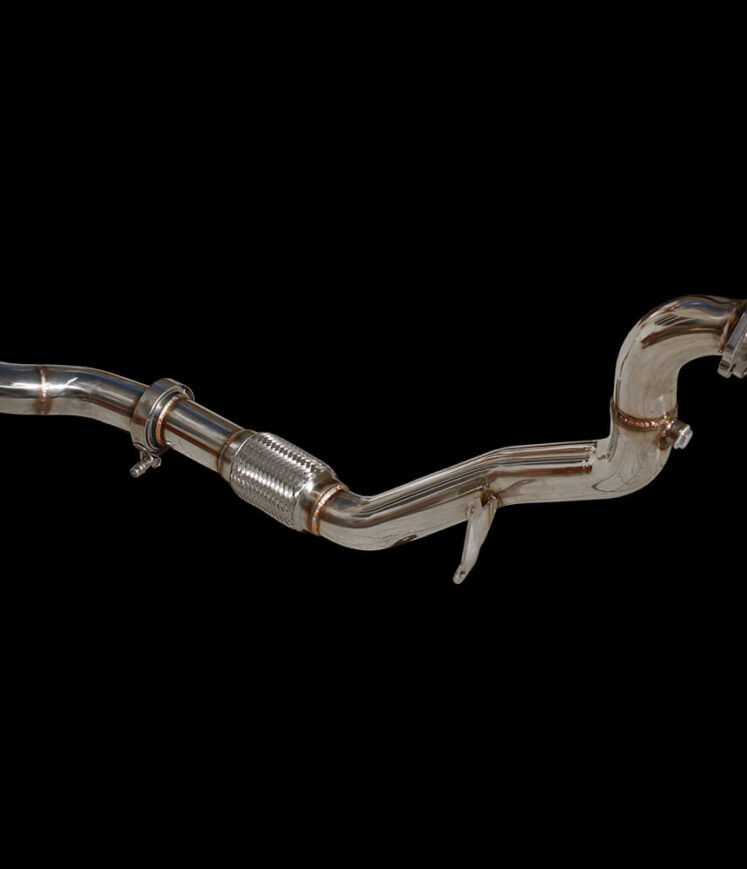

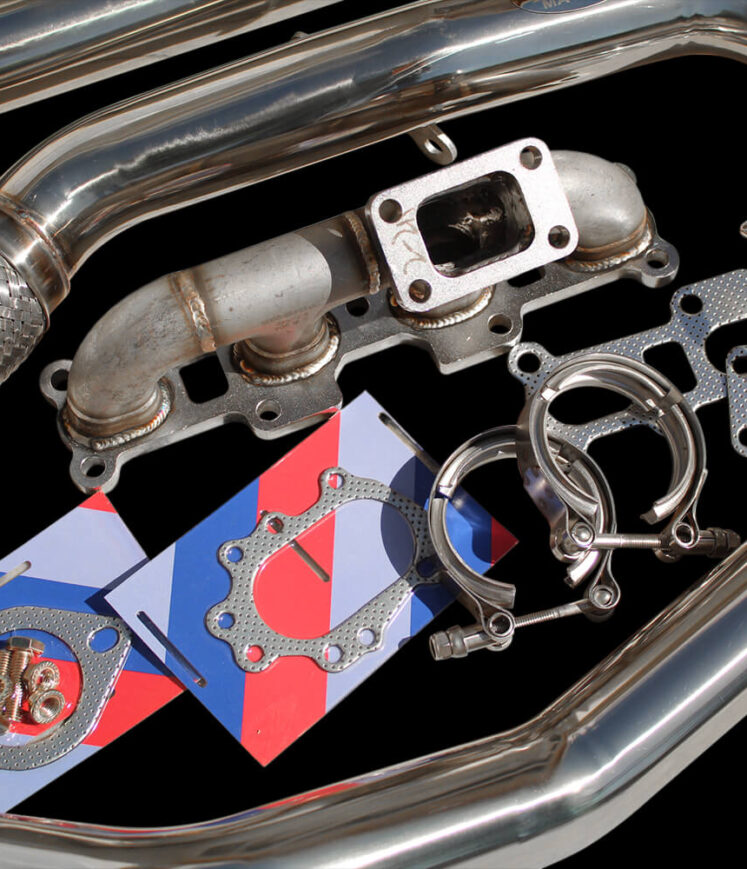

On the hot side, the manifold supplied is a 3mm-thick log type, this will flow enough for over 300 BHP. The downpipe has an M18 boss welded in for a wideband lambda sensor and connects to the standard exhaust just after the diff.
There is no cat in this pipe so it will not pass a UK MOT test. A sports cat pipe is available to comply with UK emissions regulations and can be run permanently as long as the car is mapped well and you are not using any feature which causes excessive flames, for example anti-lag.

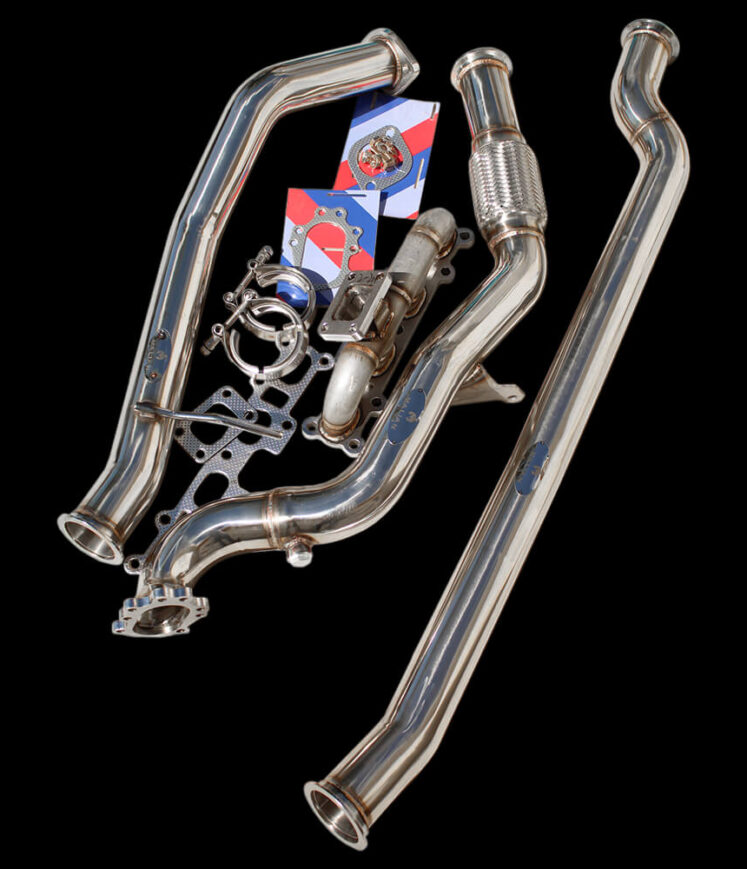

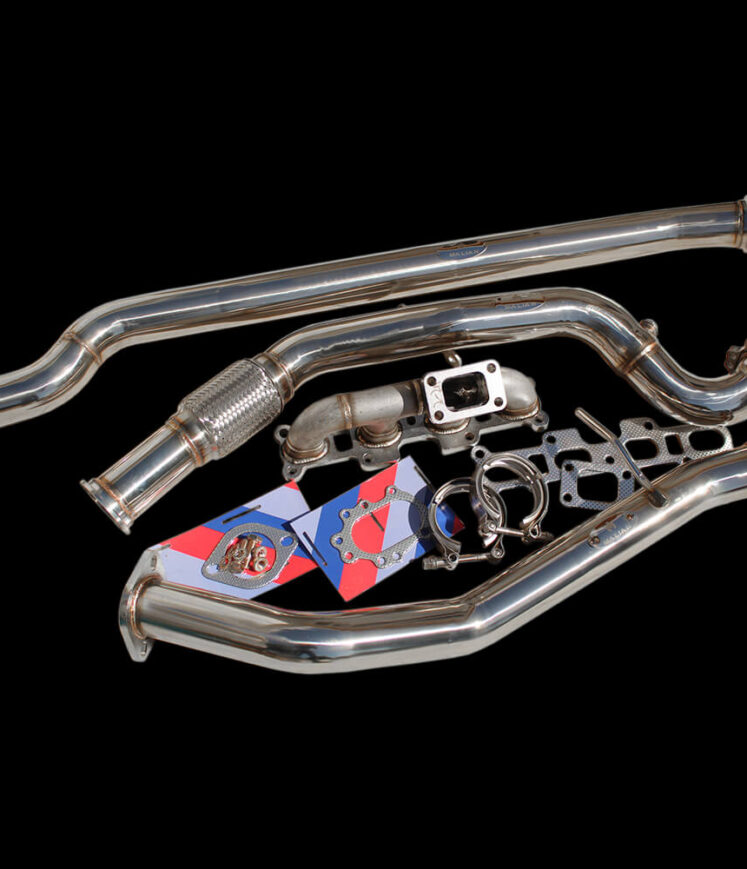

Here is a list of all the parts included in the kit:
1 x 1.8 Turbo manifold
1 x Head to manifold gasket
1 x Manifold to turbo gasket
4 x Manifold to turbo studs and nuts
1 x Turbo to elbow gasket
5 x Turbo to downpipe studs and nuts
2 x 2.5″ V-band clamp
1 x 2.5″ Stainless downpipe
1 x 2.5″ Stainless centrepipe
1 x 2.5″ Stainless rear diff passing pipe
1 x 2.5″ Gasket + bolts
|Dimensions||118 × 50 × 35 cm|
|Fitting Kit Included?||
|Manufacturer Part Number|
Aluminium, Stainless Steel
|Placement on Vehicle|
|Vehicle Production Years||
1999, 2000, 2001, 2002, 2003, 2004, 2005
MX5 Mk2 (NB Chassis), MX5 Mk2.5 (NB Chassis)
2.5" / 63.5mm
